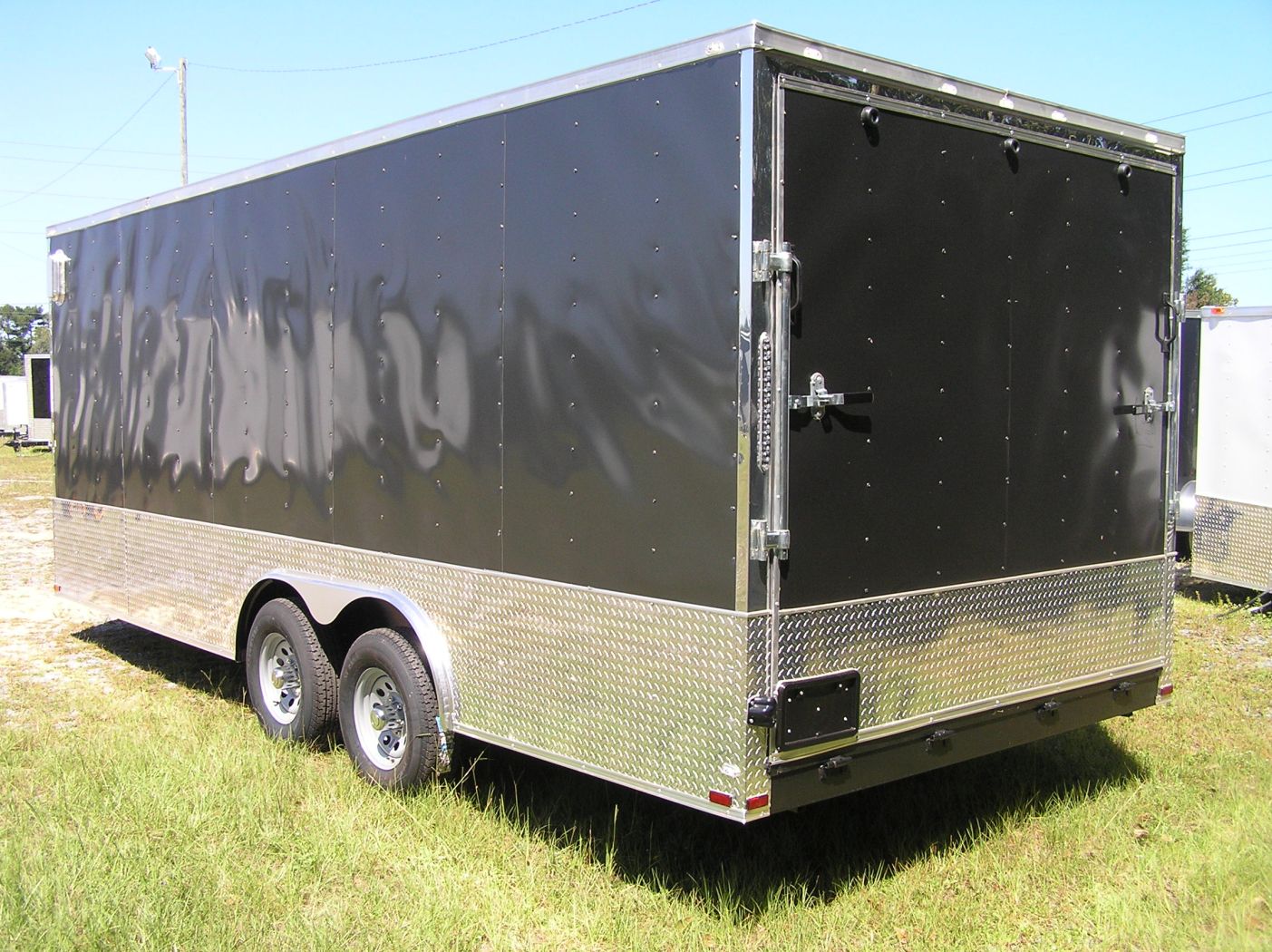

8.5×20 TA Trailer – Charcoal, Ramp, Side Door, D-Rings, 5K Axles, Finished Interior, Electrical, Cabinets, Extra Height


Custom 8.5×20 Tandem Axle Trailer – Charcoal with a Rear Ramp, Side Door with Flush Lock, 4x Floor Recessed D-Rings, 5,200 lbs. Axles, 6in Extra Height, RTP FloorRamp, White Metal WallsCeiling, Metal BaseOverhead Cabinets, and 50Amp Electrical Package

-Upgrade Tandem 3,500 lbs. Leaf Spring Axles to 5,200 lbs. (Includes ST225 Radial Tire Upgrade)
-Charcoal Grey .024 Aluminum Exterior with Matching Screws
-Ball Coupler – 2-5/16in
-7 Way Bargman Plug
-Emergency Break Away Kit
-2x Interior 12 Volt LED Dome Light with Switch
-LED Strip Tail Lights
-2x Additional 110V Interior Receptacle
-50 Amp Package – 8 Space Panel Box, 50 Amp Main Breaker & Lifeline, Cable Hatch, 2x110V Recept, 1xSwitch, 2x4ft Fluorescent Lights, 2xBreakers (Wiring will be Exposed without Ceiling Liner)
-Aluminum Tread Plate (ATP) Stone Guard on Front – 24in
-Aluminum Teardrop Fender Flairs
-Anodized Aluminum Front and Rear Corners
-Heavy Duty Exterior Trim
-Screwed Metal Exterior
-Sandpad on Tongue Jack
-Galvalume Roof
-Pair of Aluminum Side Wall Vents
-24in Diamond Aluminum Tread Plate (ATP) Trim on Sides and Rear
-1in x 1.5in Steel Tube in Walls and Ceiling
-A-Frame Style Tongue
-6in I-Beam Main Rails
-Roof Bows – 24in On Center
-Floor Crossmembers – 16in On Center
-Safety Chains
-Wall Members – 16in On Center
-+6in Extra Height (Please allow for about a 1in Tolerance)
-2,000 lbs Manual Crank Tongue Jack

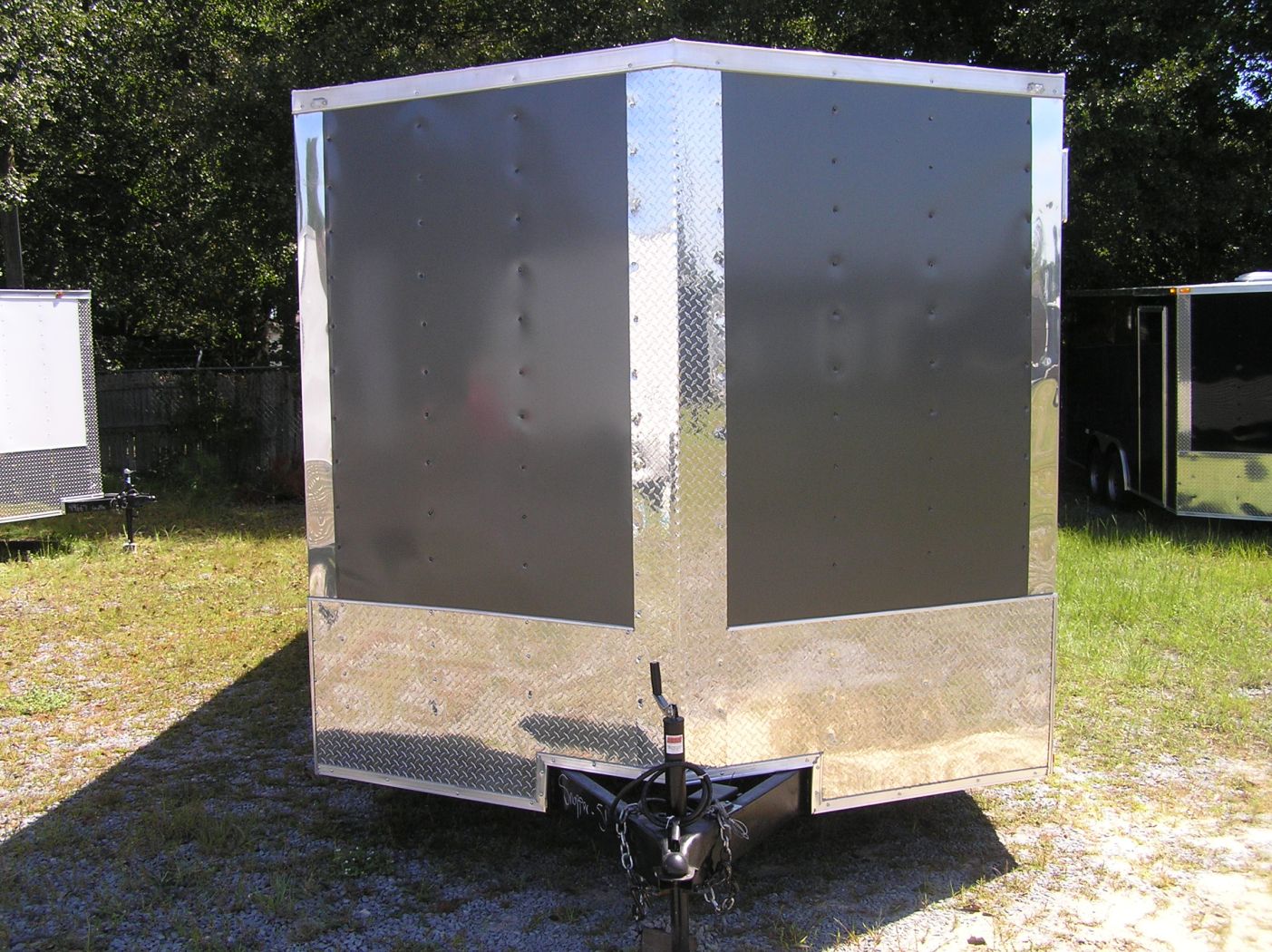

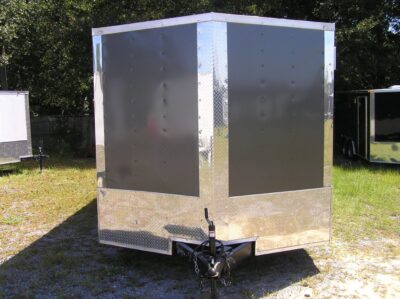

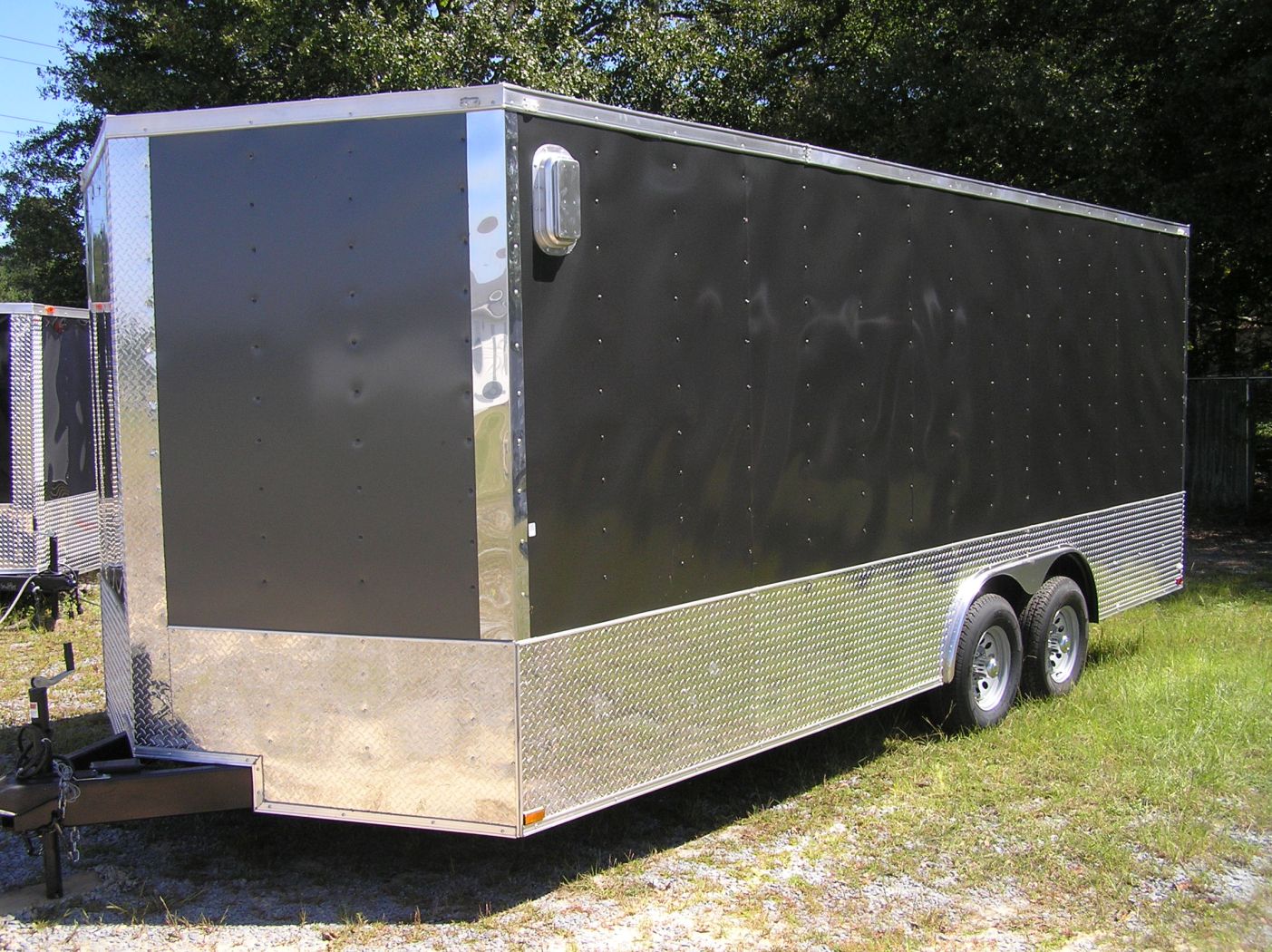

-V-Nose Front with Vertical Aluminum Tread Plate (ATP) Trim
-3/4in Plywood Floor Painted Underneath
-3/8in Grade A Plywood Walls
-Bead Board Liner In-between Roof Bows
-Cool Seal Ceiling Liner (Thermo Ply)
-4x D-Ring Recessed in Floor
-Beavertail Floor in Rear
-Metal Base and Overhead Cabinets in V-Nose (3 doors each)
-Ceiling Liner – [White/Mill Finish] Metal with Luan Backing
-Floor Liner – Diamond Rubberized Tread Plate (RTP)
-Ramp and Flap Liner – Diamond Rubberized Tread Plate (RTP) on Rear Ramp and Flap
-Wall Liner – White Metal

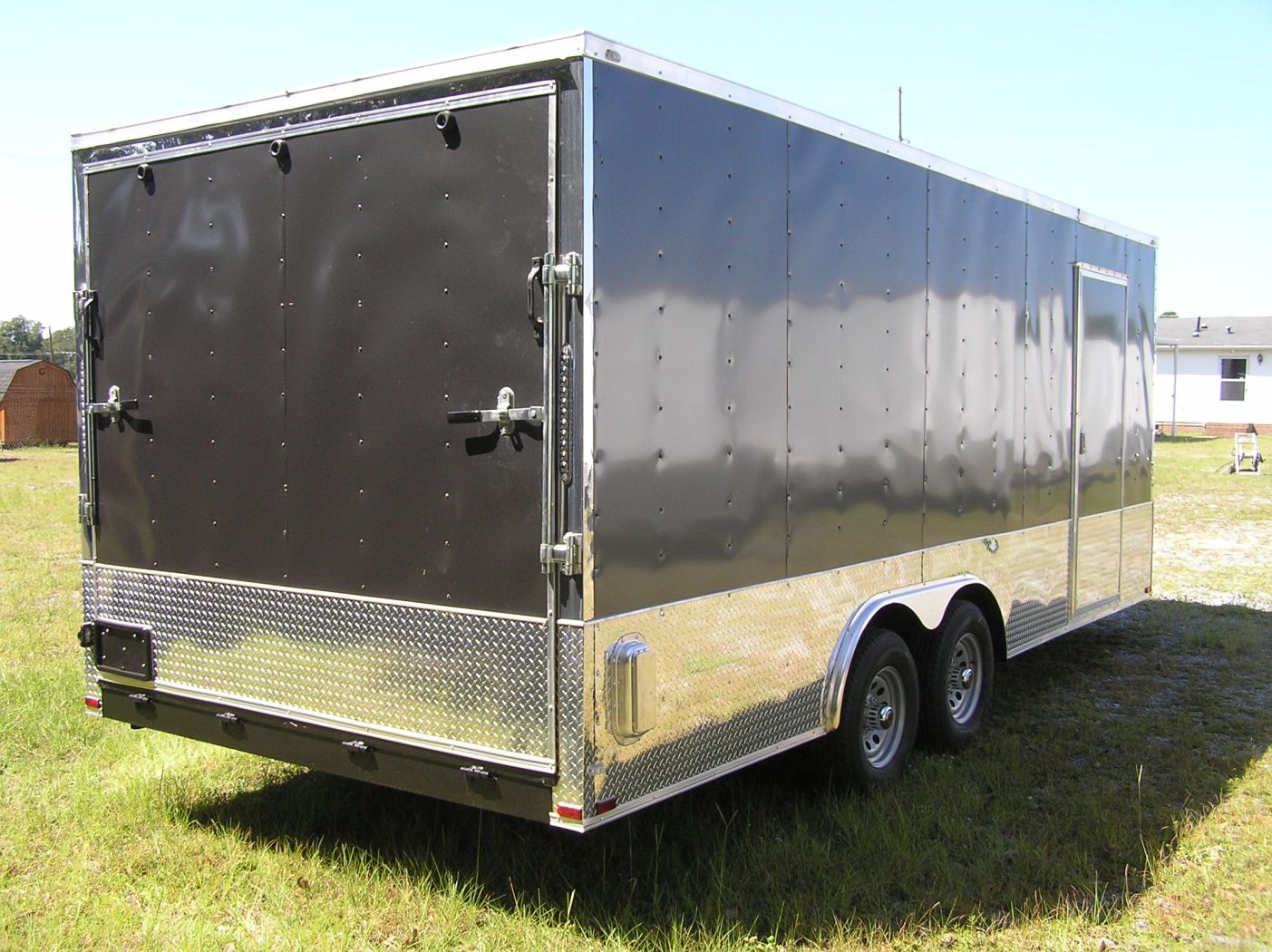

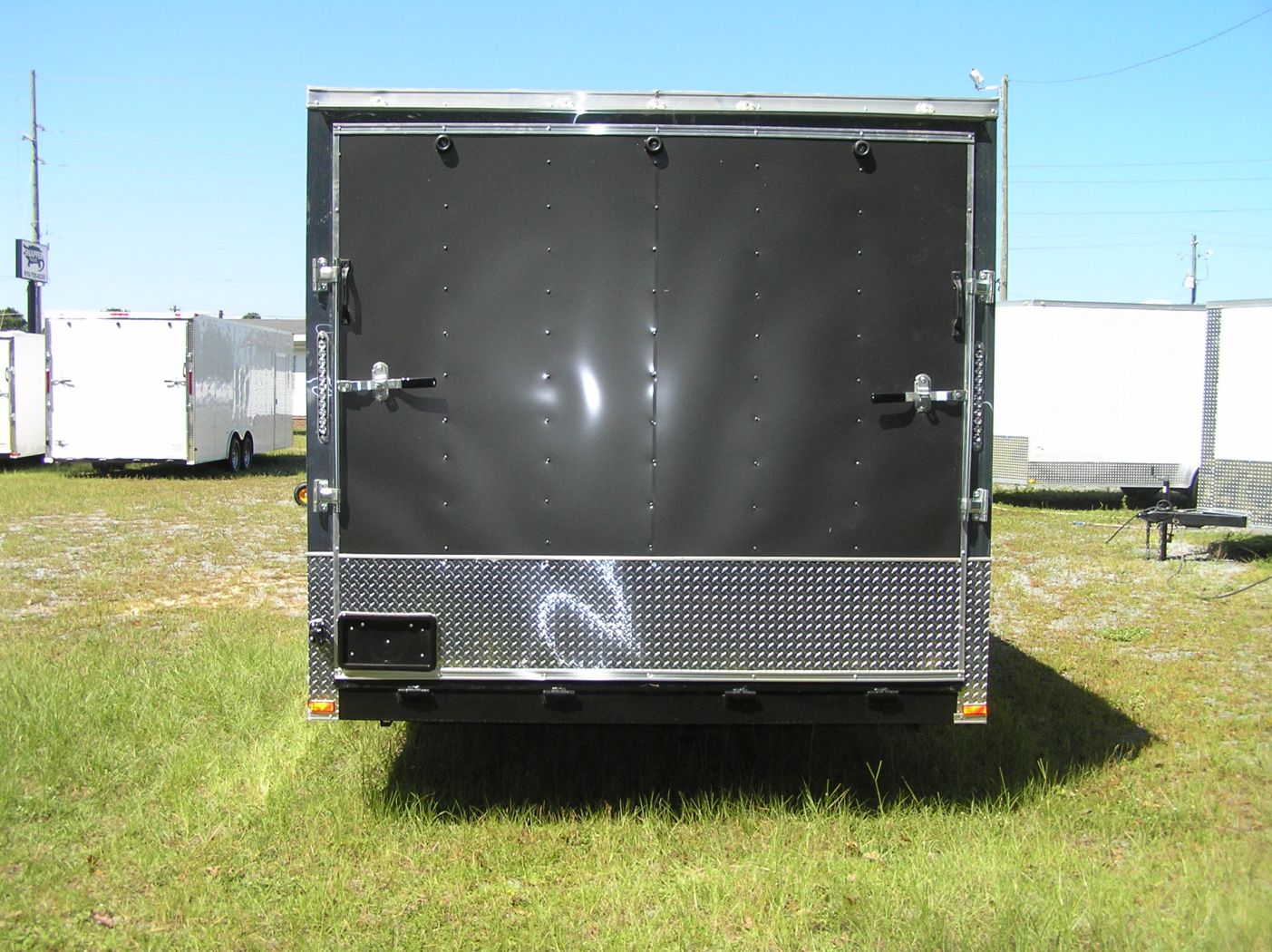

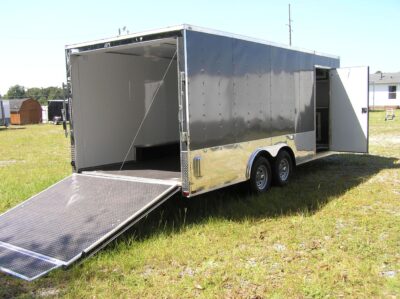

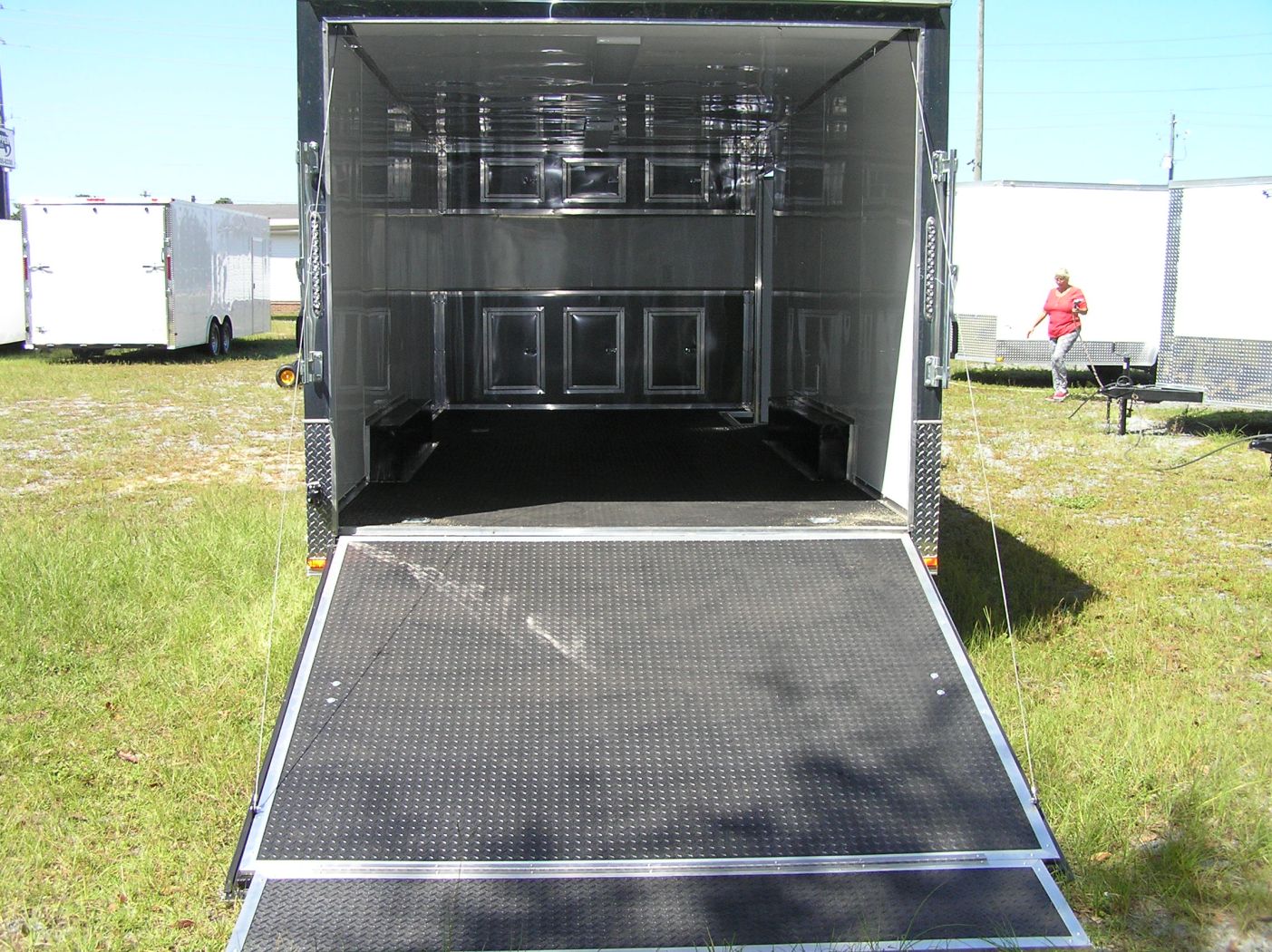

-Rear Medium Duty Ramp Door with Spring Assist and Bottom Flap

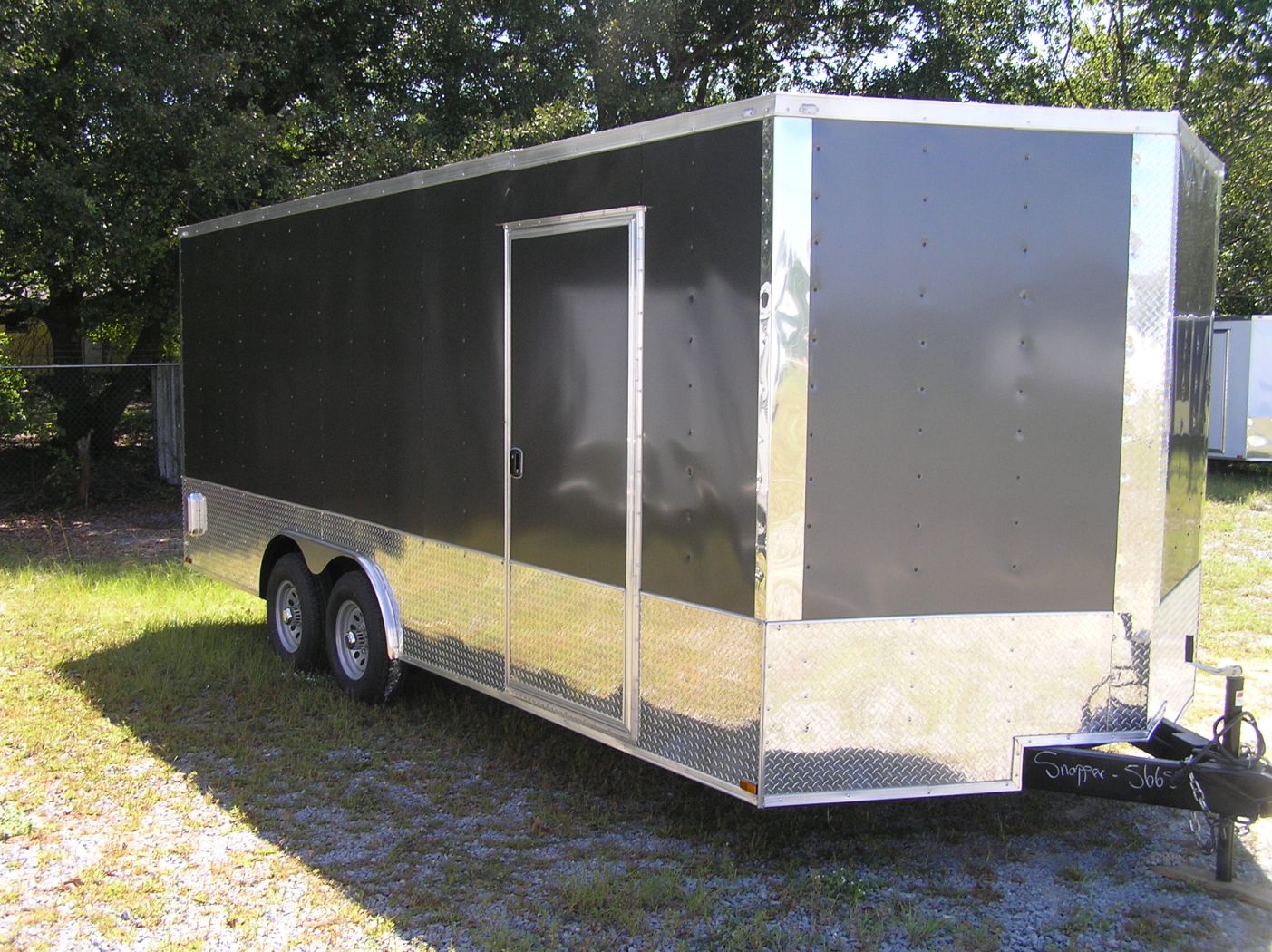

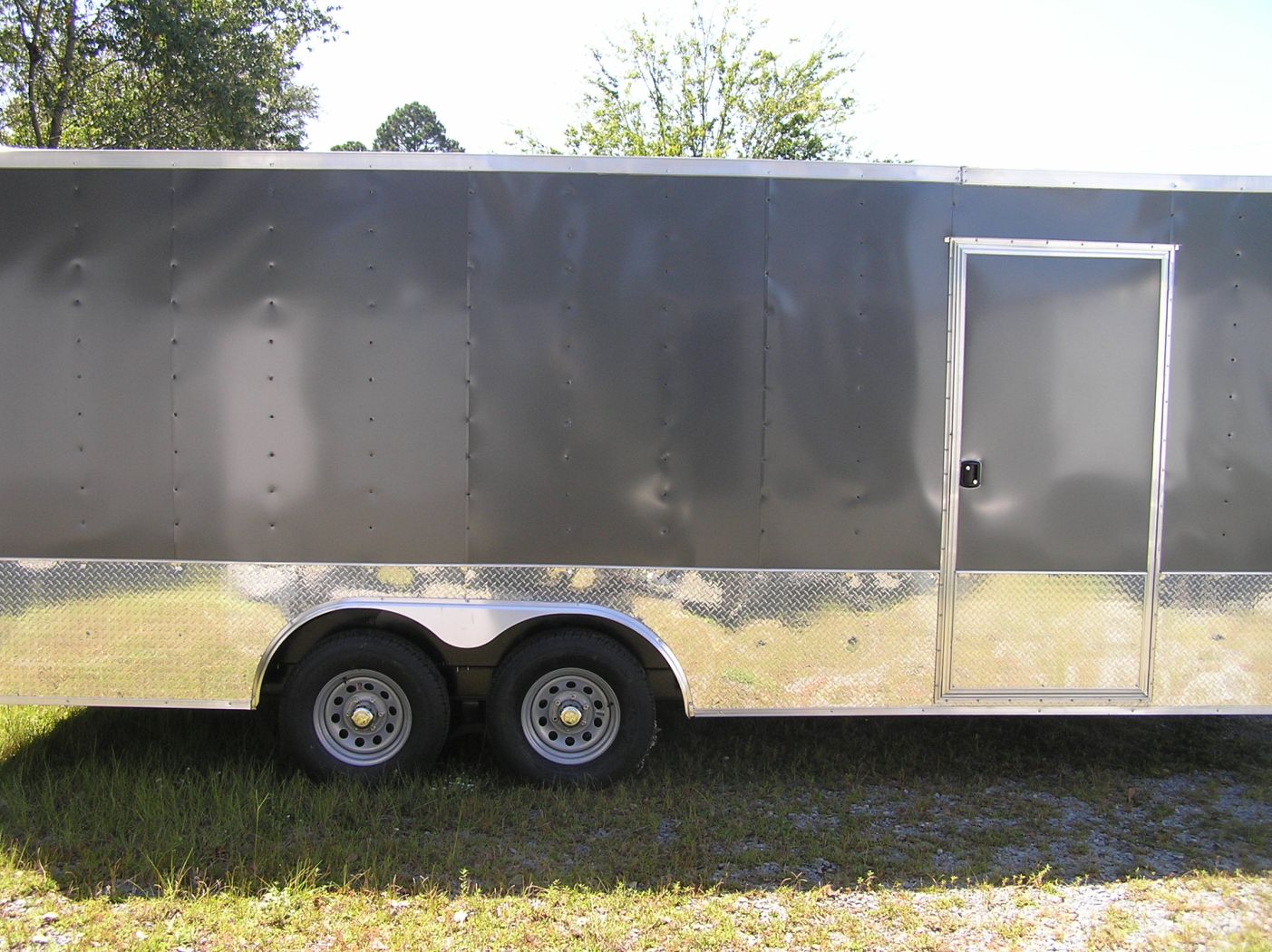

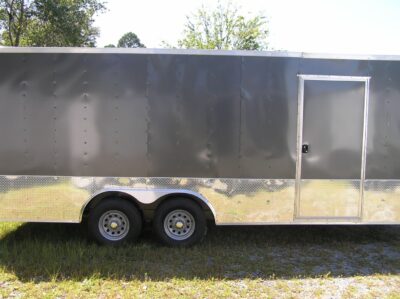

-36in Side Door with RV Style Flush Lock and Stepwell
-Three Year Manufacturers Limited Warranty
-Approximate Interior Height 84in (6ft6in +6in Extra Height)
-4x ST225/75/R15 15in Radial Tires
-Silver Powder Coated Modular Style Steel Rim with Center Cap

$9468 Picked up at our Factory Outlet in Pearson, GA (Call (229) 269-4065 for Availability)

Want to Pick it up from one of our Lot locations?
$9798 Picked up at our lot in Bushnell, FL (Call (352) 593-9800 for Availability)
$9988 Picked up at our lot in Fayetteville, NC (Call (910) 705-8330 for Availability)
$9958 Picked up at our lot in Ft Pierce, FL (Call (772) 801-0602 for Availability)
$10338 Picked up at our lot in Hillsboro, TX (Call (254) 221-0717 for Availability)
$9598 Picked up at our lot in Lake City, FL (Call (386) 361-6800 for Availability)
$9858 Picked up at our lot in Tampa, FL (Call (813) 920-0570 for Availability)

Looking for something custom? We can customize your next trailer with thousands of options! If you can dream it, we can build it! Contact one of our locations today to obtain a quote!

Over 14,000 Trailers sold since 2011! Over 500+ trailers in stock! We do things the right way!

Pricing, specifications, and availability are subject to change without notice and can be very volatile. Contact a Snapper Trailers Representative for the most up to date information and to obtain a quote.

Public Service Announcement: Never buy a used trailer. Even a single axle issue / repair will far outweigh the cost of a brand new trailer. Buy new and get a warranty without all the hassles!
